Third, the composition of the resistance dumping equipment:

1. Composition of electronic control: The panel of the control cabinet includes ammeter, voltmeter, main control intelligent instrument and push button switch, etc. The air switch, AC contactor, thyristor, fast fuse, intermediate relay, circuit breaker and Composition of other electrical components. Electrical components and the like are all "premium" products.

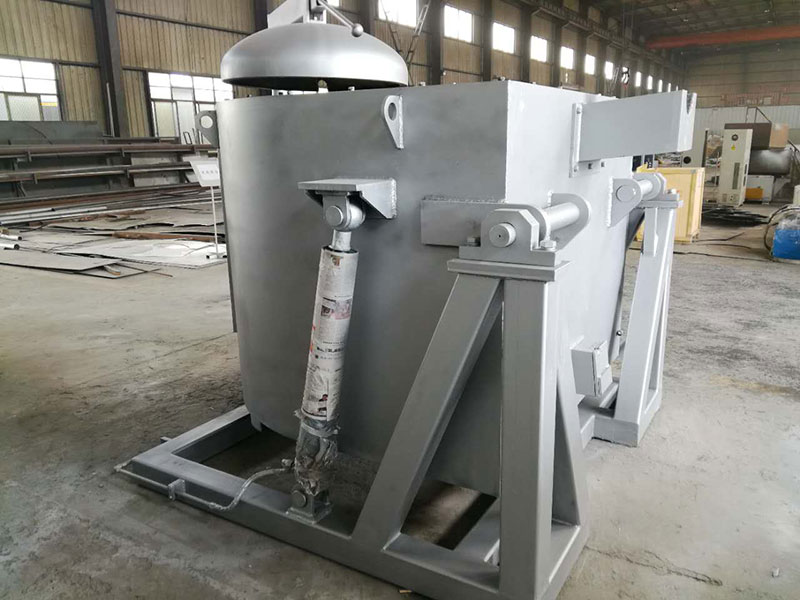

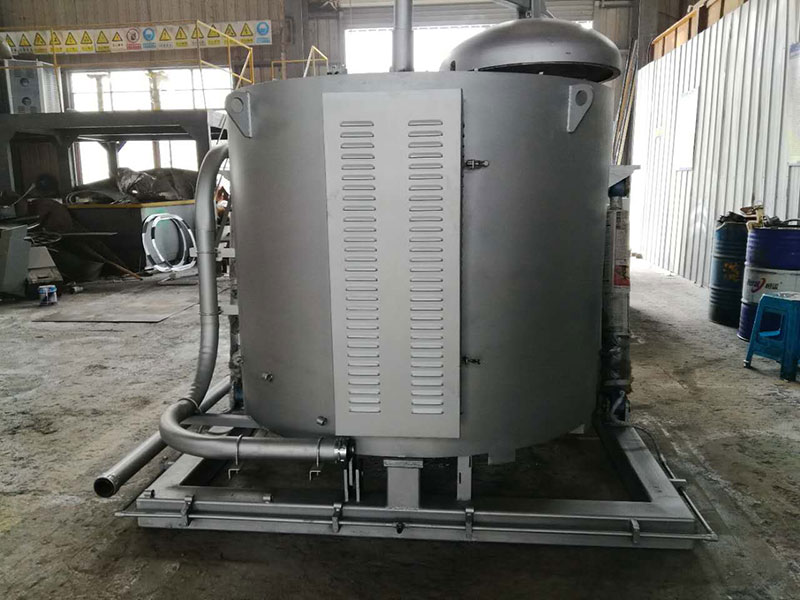

2, the composition of the furnace: from the furnace shell, furnace lining, silicon carbide crucible, heating components (resistance wire), two sets of thermocouples (furnace, each in the pool).

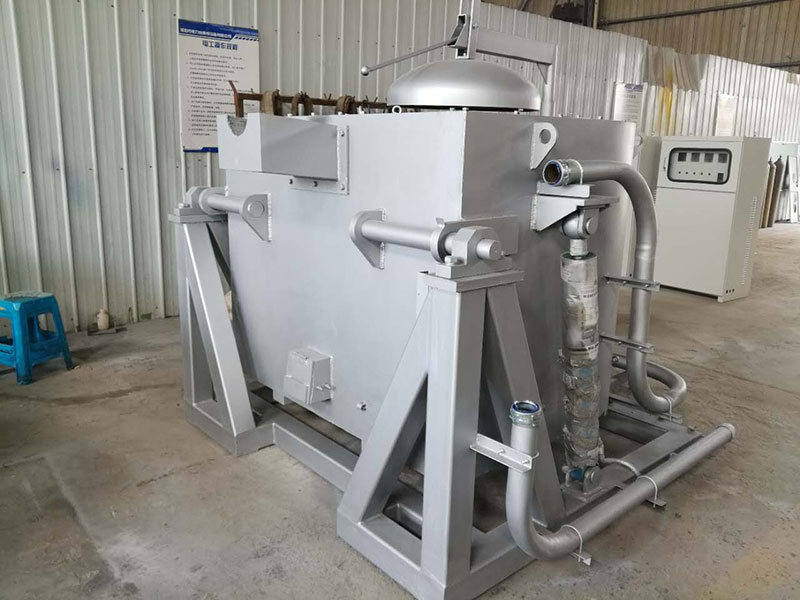

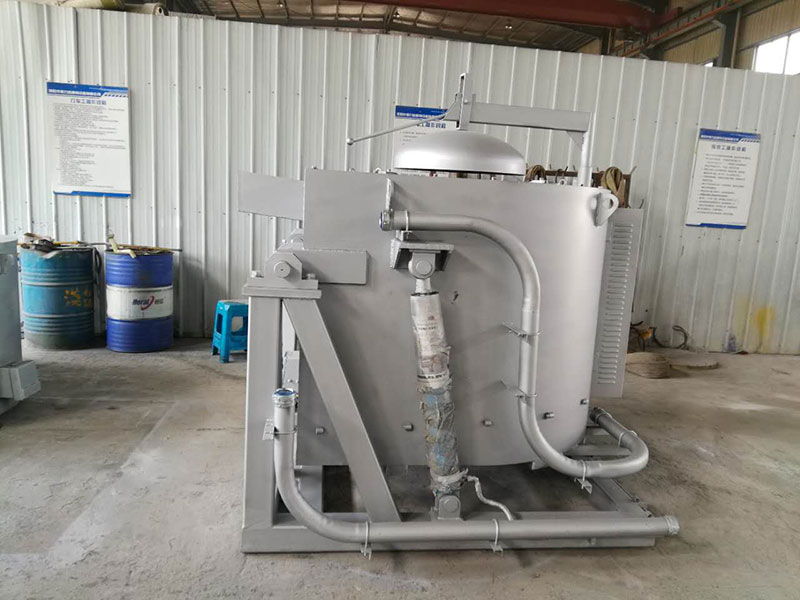

3. The hydraulic dumping system is designed to pour two cylinders of 10T or more, oil pressure station, circulating high pressure oil pipe, etc. The hydraulic dumping control is manual operation, so that problems can be dealt with in time during the dumping process, the dumping speed can be adjusted, and the tilting angle is 90 degrees.

Fourth, the safety performance of the equipment:

1. This furnace is equipped with safety devices such as current overload and furnace temperature limit protection, as well as tank leakage alarm. According to the national standard design specification, the cable load is matched with the load, and the grounding is well, there is absolutely no safety hazard.

2, the outside of the furnace is not hot to hurt people (international standard 55 ° C), the furnace lining uses multi-layer high-efficiency insulation insulation material, has a good thermal insulation and insulation effect. During the operation of the melting furnace, the furnace temperature is uniform, the furnace temperature is stable, and the fluctuation range is small.

Fifth, technical parameters related to the electric melting furnace equipped with series die casting machines
